Automate your garage door
Garage Door Serviced can supply and fit a range of automatic garage door openers. We can add an operator to your existing door to make life that bit easier, or replace an existing operator that's reached the end of its life.

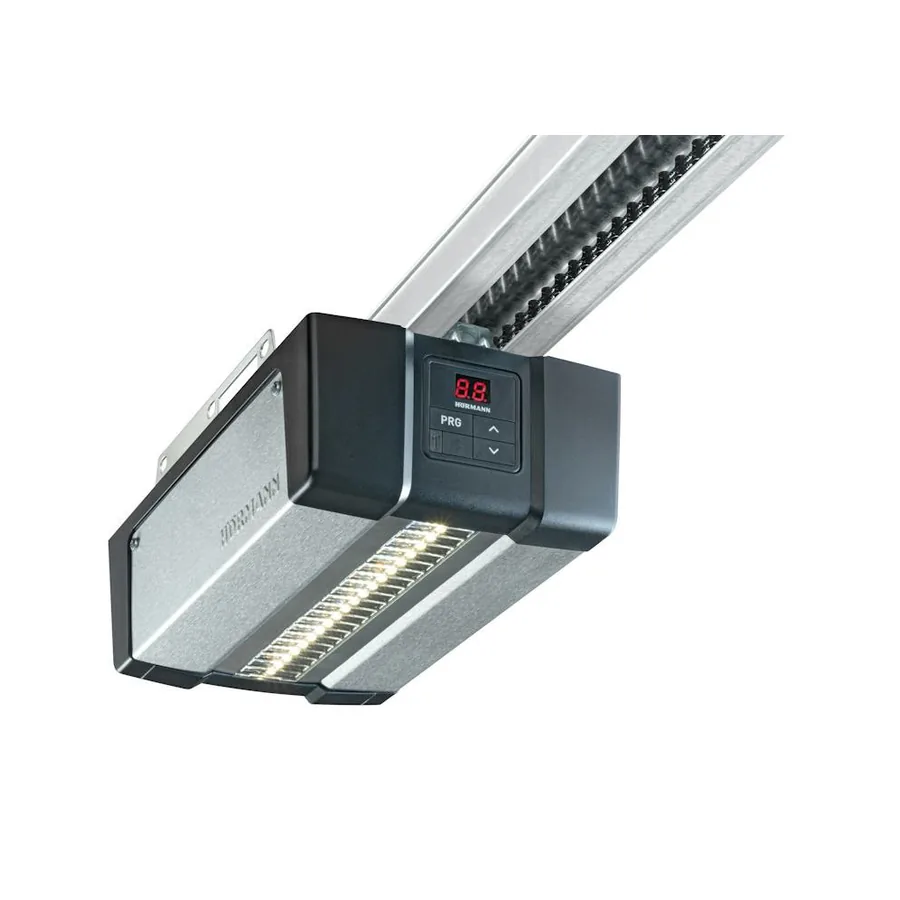

Hörmann SupraMatic
A combination of speed and comfort. Your garage door opens faster, so you're on your way in no time, and handy features include an additional opening height to ventilate the garage. The included 5-button remote can control up to four garage door openers and has a query button to control the garage light.
Soft-start and soft-stop open your door smoothly and quietly, and can be set individually for your door to increase its longevity. When the door is closed it's automatically locked into the stop position of the guide rail. It's a purely mechanical interlock that stays fully functional even during power failures.
SupraMatic operator details
- Max 25 door cycles (open/close) per day, or 12 parking operations
- 24 V DC gear drive
- Mains voltage 230 – 240 V AC, 0.2 kW
- Push and pull force 650 N, peak force 800 N
- Opening speed 22 cm/s
- Door width up to 5,500 mm (max. 13.75 m² door surface)
- Microprocessor control with 7-segment display
- Automatic adjustment of safety cut-out and travel limits
- Adjustable soft start, soft stop and second opening height
- Adjustable automatic timer, with a hold-open time of 10 – 180 seconds
- Impulse control

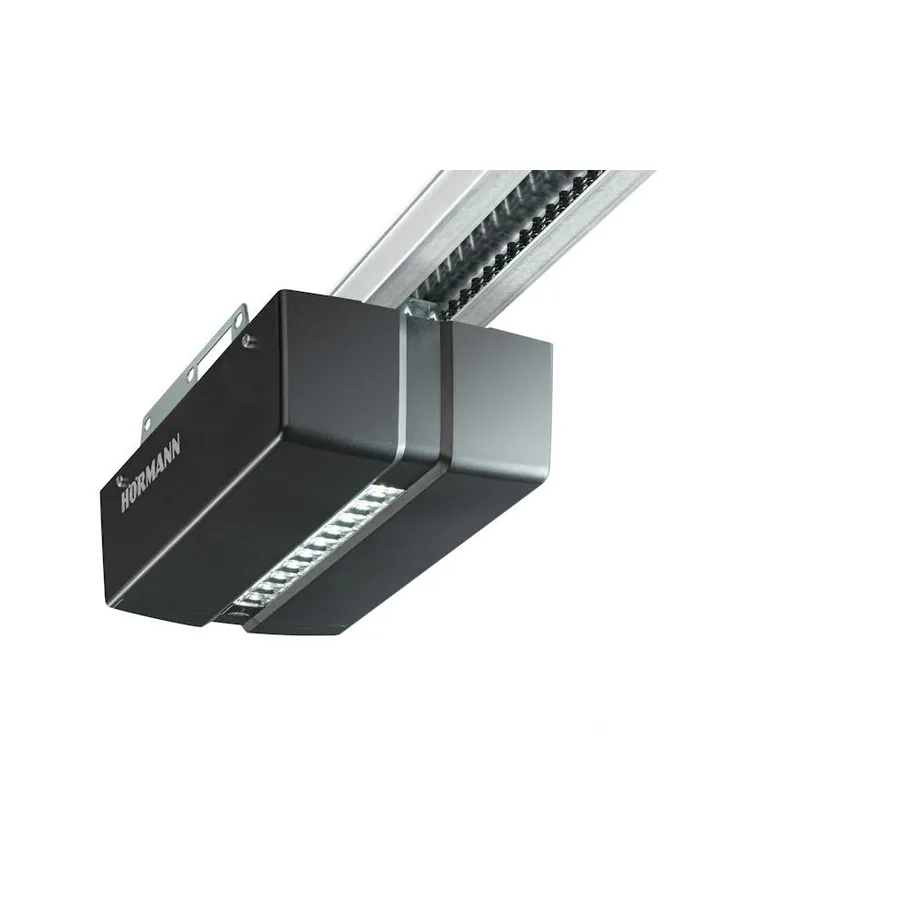

Hörmann ProMatic Series 3
German-made with a 5-year guarantee, this ultra-quiet belt-drive unit uses 128-bit encryption for its remote control, the same level of security used for online banking. An auto-reverse safety feature stops and reverses the door if it meets an obstruction, and the 30 mm slim-line boom has a mechanical anti-lift device that locks the door down when closed.
ProMatic technical details
- Push and pull force 600 N, peak force 750 N
- Garage doors up to 5,000 mm wide and 11 m² (wooden doors up to 3.5 m wide and 9 m²)
- Opening speed up to 14 cm/s
- 24 V DC gear motor
- Power supply 230 – 240 V AC, 0.2 kW
- Standby under 7 W
- Up to 12 door cycles per day (around 6 cars in and out)
- Plastic housing with galvanised steel base plate
